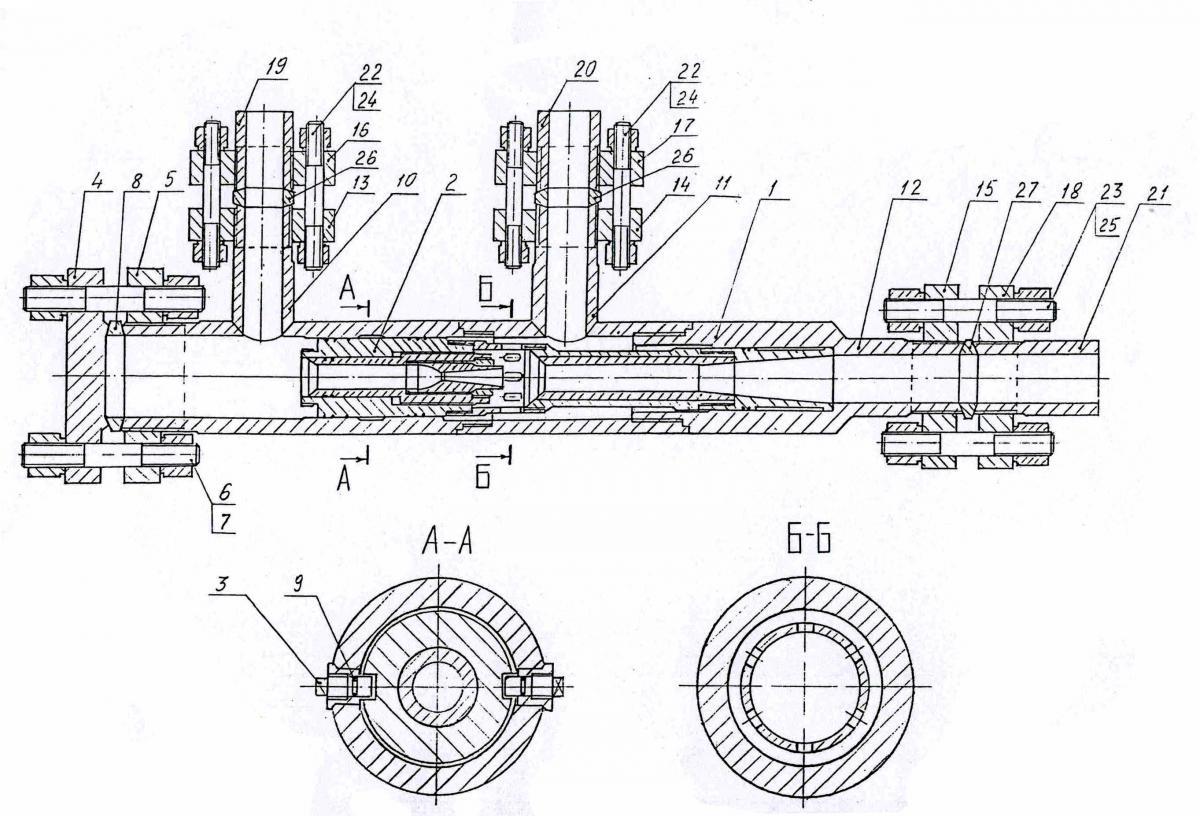

EG-1
Main technical specifications of EG-1 ejector are listed in the table:
|
Specifications and dimentions |
Unit of measurement |
Norm |
|
1Gas pressure: High pressure gas Low pressure gas 2 Volume flow rate of the high pressure gas 3 Ejection coefficient 4 Inner diameter of the nozzle 5 Inner diameter of the mixing chamber 6 Maximum operating temperature 7 Ejector overall dimensions: length width height 8 Ejector weight (without package) |
MPa (bar) MPa (bar) mmscfd
inches inches °C
inches inches inches lbs |
3(30) – 20 (200) 0,2(2) – 12,5 (125) from 0.35 to 8.8 from 01, to 0,3 from 0.2 to 0.6 from 0.4 to 1.4 50
not more than 59 not more than 10 not more than 17 not more than 353 |
