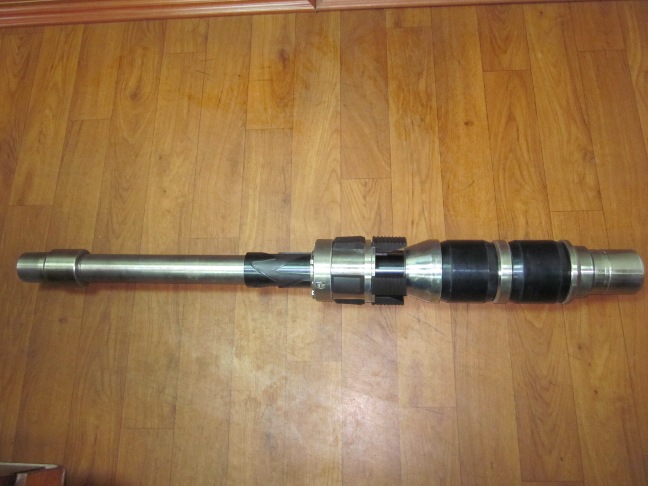

Mechanical packers are intended to be used for separation of the reservoir from the annular space or two reservoirs from one another.

Main distinguishing feature of our production packer from mass-produced one - is the ability to transfer the packer from transit to working condition and vice versa by vertical displacement of the flow column, whereon it is descended, instead of its rotating.

Shifting mechanism provides numerous and safe transition of the packer from one position to another. These packers usage is especially effective in deflected wells.

Packers are manufactured for operation in the columns 5.5-7 inches in diameter.

Basic parameters and dimensions of our packers are given in the following table.

Specifications and dimensions

Unit of measurement

Packer identification code

PM-109В

PM-112В

PM-115В

PM-118В

PM-122В

PM-136В

PM-140В

PM-150В

1 Maximum axial load for packer seating and releasing

kN

50

60

60

80

80

100

100

120

2 Operating pressure (differential pressure)

MPa

50, not more

3 Bore diameter

inches

1.4

1.5

1.6

1.7

2

2.5

4 Temperature of  surrounding environment

К, (°С)

373 (100), not more

5 Overall dimensions:

- Outer diameter (nominal)

- Outer diameter (unclamped)

- length

inches







4.3



4.8

65





4.4



4.9

67





4.5



5

67





4.6



5.2

67





4.8



5.4

67





5.3



6

67





5.5



6.2

67





5.9



6.5

75

6 Packer weight (without package)

lbs

62

66

71

84

88

108

114

136
